Schneider Electric

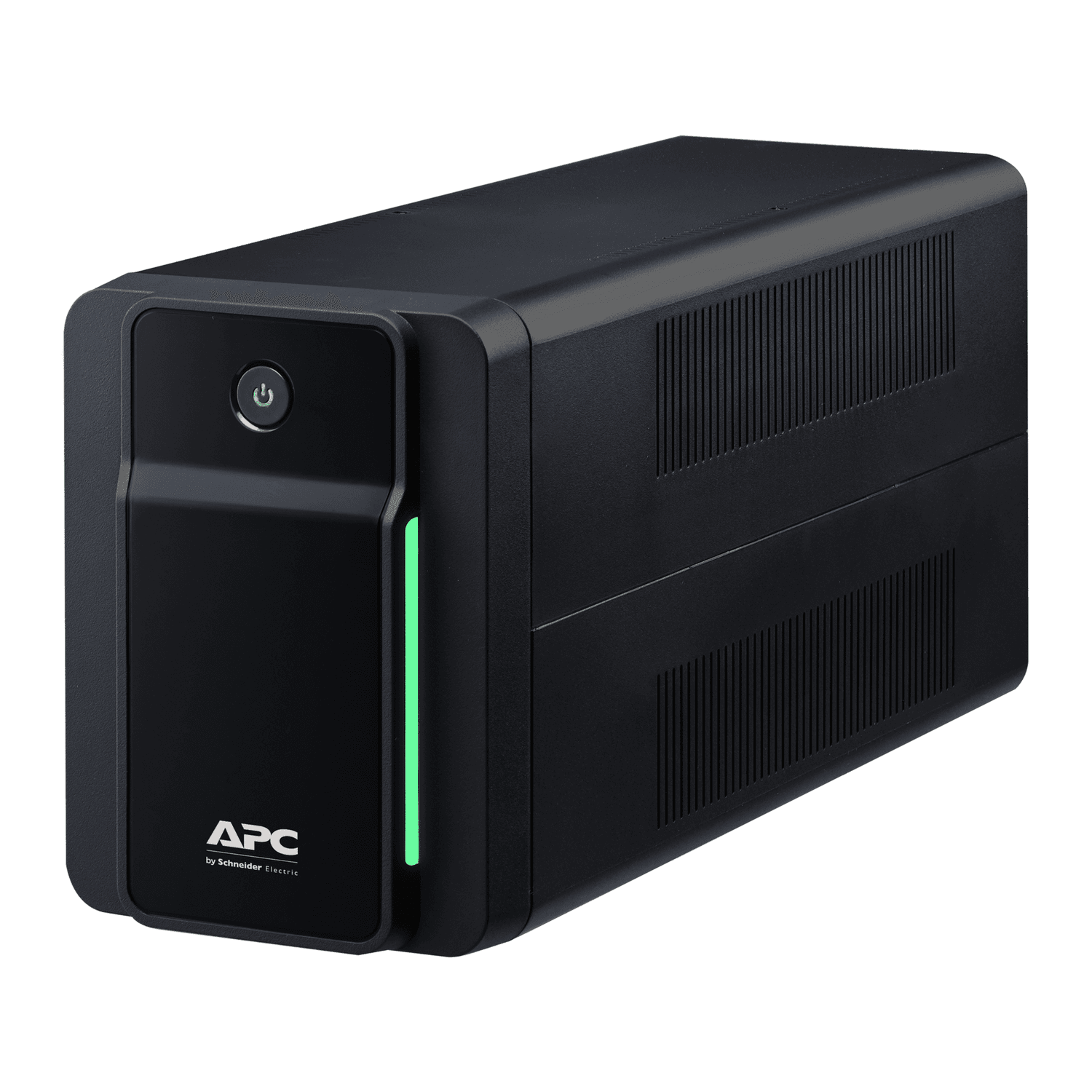

Schneider Electric BX950MI-GR APC
The Schneider Electric BX950MI-GR APC is a Back-UPS line-interactive UPS, part of the Schneider Electric Power Supply range. It offers 520 W rated power, a 140-300 V supply, IP20 protection and USB connectivity.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for BX950MI-GR APC
| Supply voltage | 140-300 V |
|---|---|
| Interface / protocol | USB |
| Degree of protection | IP20 |
| Rated power | 520 W |
Description
Back-UPS line-interactive UPS, model BX950MI-GR. Capacity: 950VA / 520W. Topology: line-interactive with Automatic Voltage Regulation (AVR). Input voltage: 230VAC, range 140-300V. Output voltage: 230VAC. Output waveform: simulated sine wave (stepped approximation). Outlets: 4x CEE 7/7 Schuko (Type F) battery-backed. Surge protection energy: 273 Joules. Transfer time to battery: 6ms. Battery technology: sealed lead-acid (VRLA), 9Ah. Battery recharge time: 8 hours to 90%. Battery life: 3 to 5 years. Typical backup time: approx. 1 min at full load (520W), approx. 6.5 min at half load (260W). Connectivity: USB Type B (for UPS management software), 2x RJ-45 Ethernet LAN (network line protection). Form factor: tower. Dimensions: 120mm W x 355mm D x 160mm H. Noise level: 40 dB. IP20. LED status indicators and audible alarms (low battery, overload). Certifications: CB, CE, IEC 62040-1, IEC 62040-2
Repairs
We repair and refurbish Schneider Electric Power Supply units in-house with bench testing and a warranty on every repair. Start a repair.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
