Schneider Electric VPM02D20AA22

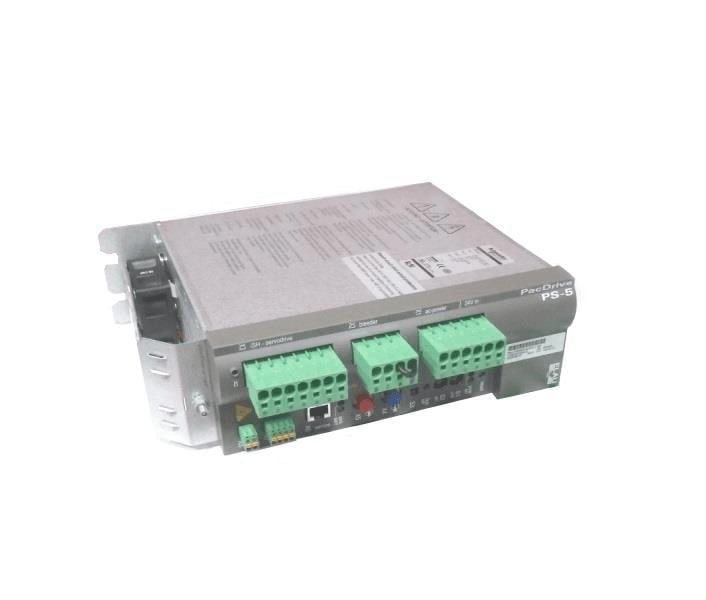

The Schneider Electric VPM02D20AA22 is a PS 5 power supply module for PacDrive systems, part of the Schneider Electric Modules range. It offers 200 W rated power, a 480 V AC supply, 20 A rated current and a 62 Hz supply frequency.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for VPM02D20AA22
| Supply voltage | 480 V AC |
|---|---|
| Rated current | 20 A |
| Degree of protection | IP20 |
| Rated power | 200 W |
| Frequency | 62 Hz |
Description
PS 5 power supply module for PacDrive systems. Input 1 or 3 phase 220 480 VAC, 48 62 Hz. DC bus voltage 270 680 V DC. DC bus continuous current 20 A with 3 phase input DC bus peak current 40 A 1 s . Auxiliary/control output 24 V DC, up to 13 A. Internal bleeder resistor 23 Ohm 200 W . Cooling internal fan. Protection class IP20. Approvals CE, cULus.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
