Product image is representative; revision or series may vary. Contact us to request a specific version.
Festo

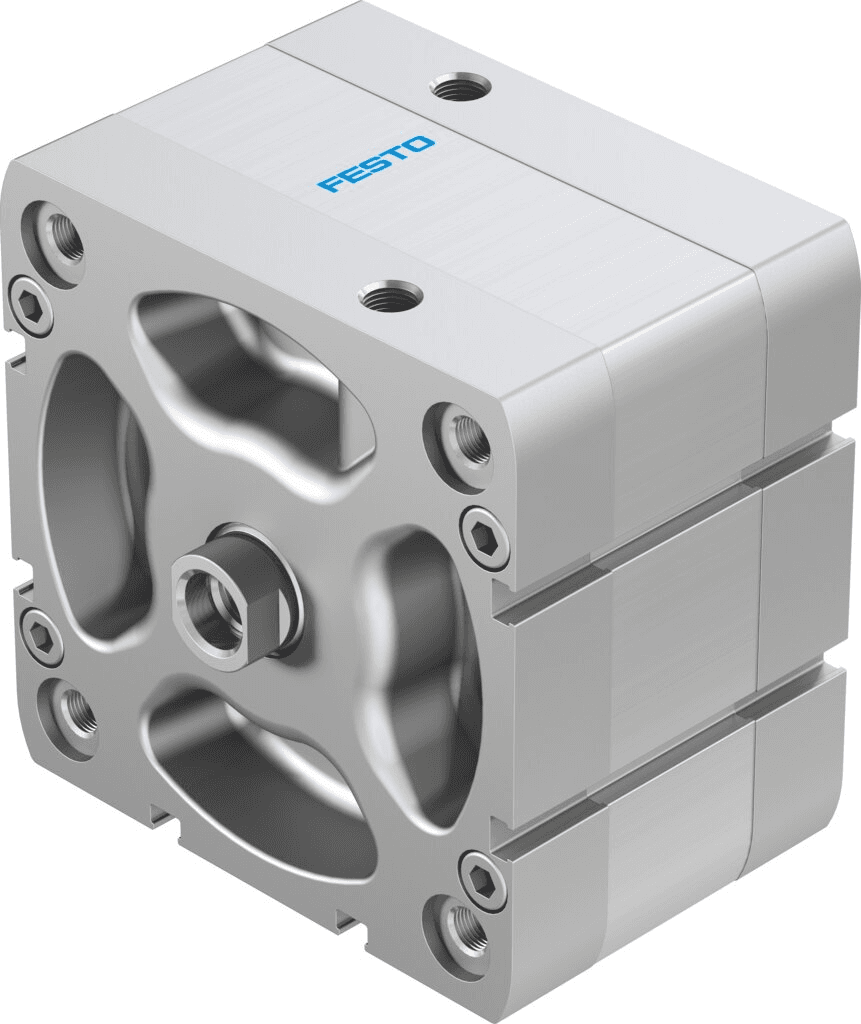

Festo 536372 ADN-100-10-I-P-A-EX4
The Festo 536372 is a Compact pneumatic cylinder per ISO 21287. CMP Automate supplies the 536372 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Description
Compact pneumatic cylinder per ISO 21287, type ADN-100-10-I-P-A-EX4, part number 536372. Double acting, piston diameter 100 mm, stroke 10 mm. Option codes: I = female (internal) piston rod thread, P = flexible cushioning rings/pads at both ends, A = position sensing via integrated magnet for proximity sensors, EX4 = explosion-protected variant certified ATEX II 2GD c for use in gas and dust hazardous zones 1/21. Self-adjusting pneumatic construction of the ADN platform, operating pressure range approx. 0.6 to 10 bar per family data (possible restrictions for the Ex variant per datasheet), theoretical force at 6 bar approx. 4,700 N advancing, mounting via female thread on both end caps plus flange, foot and trunnion accessory range of the ADN 100 size.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
