Product image is representative; revision or series may vary. Contact us to request a specific version.
Festo

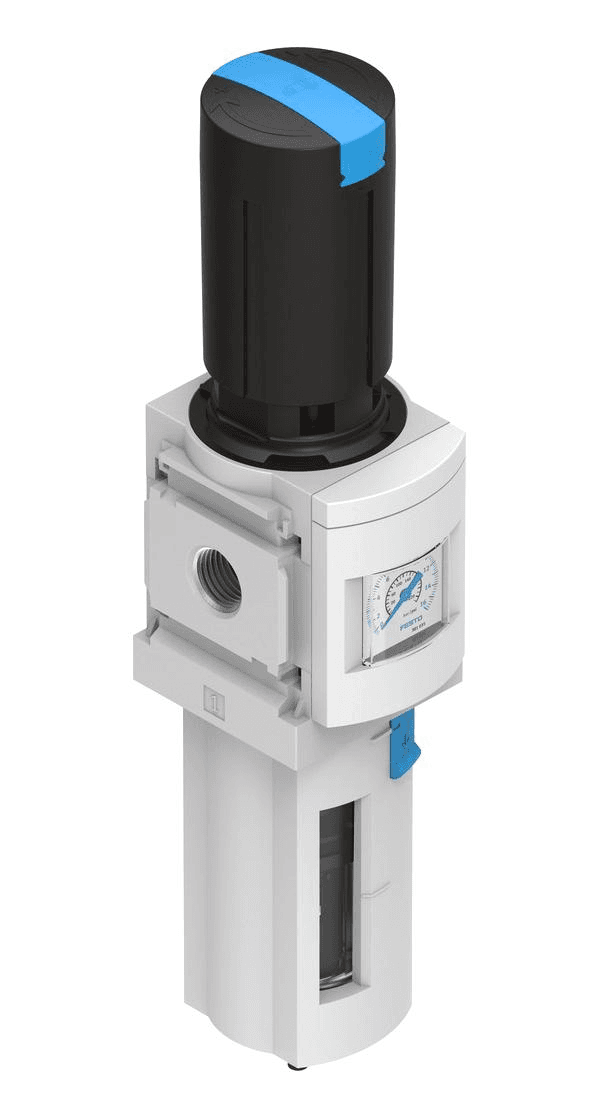

Festo 529226 MS6-LFR-3/8-D7-CRV-AS
The Festo 529226 is a Filter regulator. It offers an ambient range of 5 to +60 °C. CMP Automate supplies the 529226 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 529226 MS6-LFR-3/8-D7-CRV-AS
| Ambient temperature | 5 to +60 °C |
|---|
Description
Filter regulator, MS series size MS6 (grid dimension 62 mm), type MS6-LFR-3/8-D7-CRV-AS, part number 529226. Combined particle filter and pressure regulator for compressed air preparation: pneumatic connection female thread G3/8, pressure regulation range 0.5 to 12 bar (D7 code), maximum input pressure 20 bar class, filter grade 5 um, high flow rate approx. 3,500-4,000 l/min for the 3/8 size. Configuration codes: C = with integrated MS pressure gauge (bar scale), R = rotary knob with detent (lockable with accessory), V = fully automatic condensate drain (the CRM sibling 529224 has manual drain), AS = supplied with threaded connection plates for the MS modular system, allowing combination with MS6 lubricators, on/off valves, branching and further modules. Bowl with guard per series execution, operating temperature range per family data (auto drain +5 to +60 C), ISO 8573-1:2010 air quality reference, Festo Core Range item.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
