Danfoss

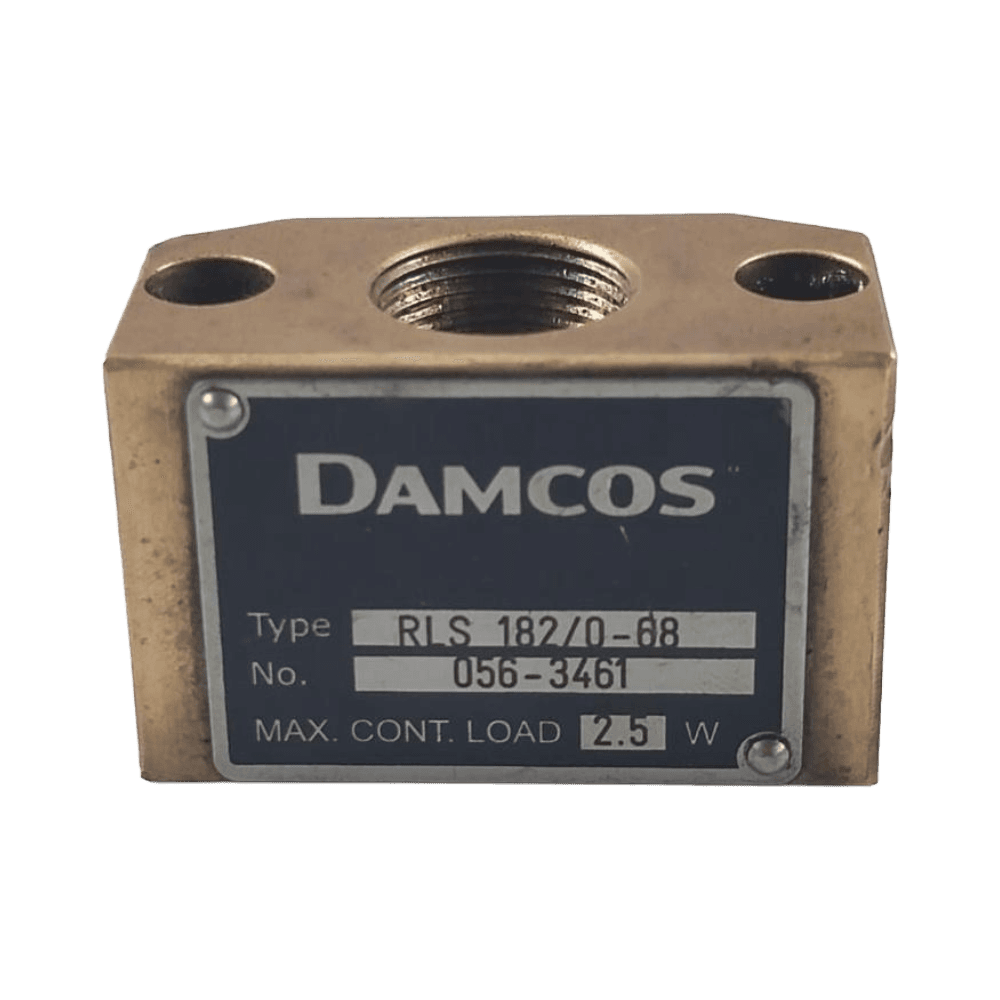

Danfoss 056-3461 Damcos RLS 182/0-68
The Danfoss 056-3461 is an Actuator mounted on/off position indicator. It offers 2.5 W rated power, 4 poles and IP68 protection. CMP Automate supplies the 056-3461 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for 056-3461 Damcos RLS 182/0-68
| Degree of protection | IP68 |
|---|---|
| Rated power | 2.5 W |
| Number of poles | 4 |
Description
Actuator mounted on/off position indicator, IP68. Two normally open reed switches resin embedded and actuated by separate magnet arms adjustable end position indication for intervals from 15 to 180 . 4 pole terminal with cable gland PG13.5 . Max continuous load 2.5 W, max peak load 12 W. Operating temperature 20 C to 80 C. Materials brass housings and magnet arms, plastic bonded rare earth magnets, AISI 304 fasteners.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
