Beckhoff
Beckhoff BK5250
The Beckhoff BK5250 is a DeviceNet compact bus coupler for modular I/O supports up to 64, part of the Beckhoff Modules range. It offers a 24 V DC supply, IP20 protection, DeviceNet connectivity and DIN rail mounting.
Prices include 5% VAT.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping worldwide.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: CMP Automate is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with CMP Automate's 1-year warranty.
Technical specifications for BK5250
| Supply voltage | 24 V DC |
|---|---|
| Interface / protocol | DeviceNet |
| Degree of protection | IP20 |
| Mounting | DIN rail |
Description
DeviceNet compact bus coupler for modular I/O supports up to 64 bus terminals up to 255 with K bus extension automatic baud rate detection up to 500 kBaud two address selection switches 5 pin open pluggable DeviceNet connector included up to 1,020 digital peripheral signals and 256 analog peripheral signals max. fieldbus bytes 512 input / 512 output power via bus cable 11 25 V 24 V DC , K bus supply up to 1750 mA DIN rail mount, IP20 weight approx. 100 g.
Repairs
We repair and refurbish Beckhoff Modules units in-house with bench testing and a warranty on every repair. Start a repair.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
Related Modules products
Beckhoff
BK7350
The Beckhoff BK7350 is a MODBUS compact BUS COUPLER, part of the Beckhoff Modules range. It offers a 24 V DC supply, IP20 protection and Modbus connectivity. CMP Automate supplies the BK7350 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$1,174.13
In Stock
Beckhoff
BK7300
The Beckhoff BK7300 is a MODBUS BUS COUPLER, part of the Beckhoff Modules range. It offers a 24 V DC supply, Modbus connectivity and DIN rail mounting. CMP Automate supplies the BK7300 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$393.49
In Stock
Beckhoff
BK8000
The Beckhoff BK8000 is a RS485 bus coupler, part of the Beckhoff Modules range. It offers a 24 V DC supply, 10 A rated current and dimensions of 51 × 100 × 69 mm. CMP Automate supplies the BK8000 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$453.78
In Stock
Beckhoff
KL1104
The Beckhoff KL1104 is a Bus Terminal, part of the Beckhoff Modules range. It offers a 24 V DC supply. CMP Automate supplies the KL1104 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$60.89
In Stock
Beckhoff
ELX1054
The Beckhoff ELX1054 is an ETHERCAT terminal, part of the Beckhoff Modules range. It offers a 8.2 V DC supply, IP20 protection and EtherCAT connectivity. CMP Automate supplies the ELX1054 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$228.47
In Stock
Beckhoff
KL4012
The Beckhoff KL4012 is a Bus Terminal, part of the Beckhoff Modules range. CMP Automate supplies the KL4012 new, refurbished or tested used. Shipped worldwide from Dubai, bench-tested with a 1-year warranty.
$396.67
In Stock
Beckhoff
EL2008-0015
The Beckhoff EL2008-0015 is a 8-CHANNEL digital output terminal 24 VDC, part of the Beckhoff Modules range. It offers a 24 V DC supply, 0.35 A rated current and IP20 protection.
$125.35
In Stock
Beckhoff

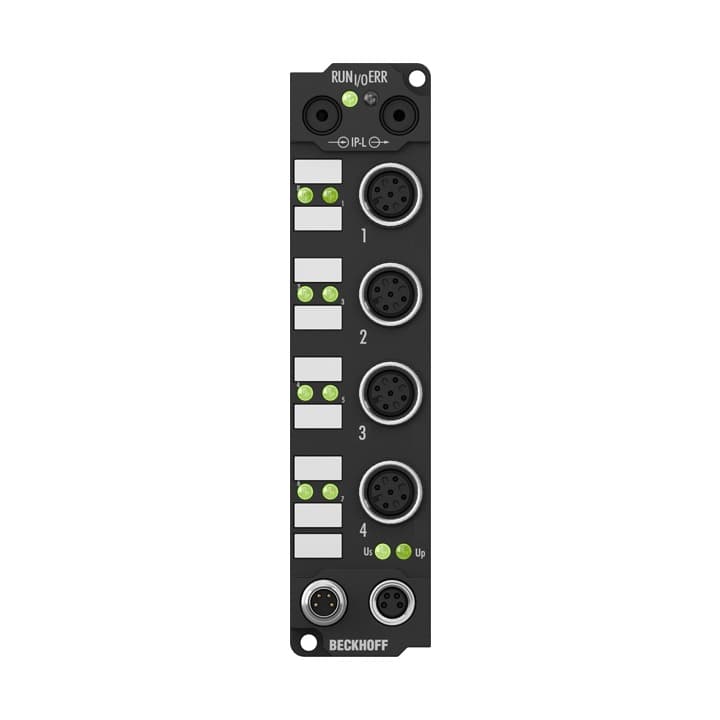

IE3112
